Autel MaxiSys MS906S
Sinds kort is de opvolger van de meest populaire Autel scanner gelanceerd, namelijk de Autel MS906S. Het apparaat is nog gebruiksvriendelijker, sneller, is voorzien van een groter scherm en heeft een ontzettend grote voertuigdekking. De Autel MaxiSys MS906 is Nederlandstalig en biedt uitmuntende diagnostische mogelijkheden en is een waardige opvolger voor de Autel MaxiDas DS708. Deze diagnosecomputer is geschikt voor ieder garagebedrijf. Je vindt een uitgebreide omschrijving van de mogelijkheden verder op deze pagina. De software is volledig Nederlandstalig.
Read more
Autel MaxiSys MS906S diagnostic computer
The Autel MaxiSys MS906 is the ideal diagnostic computer for every workshop. The entire car can be read at dealer level. Besides reading, live data can be viewed and data logging is possible. The important service functions are also available. For the extensive capabilities of this device, please consult the list below.
Autel MS906S features and capabilities
- Vehicle coverage for approximately 80 European, Asian and American cars from 1990 to the present
- All systems present in the car can be accessed: (Engine, Transmission, ABS, Airbags, Immobilizer, Instrument panel, Air conditioning, Power steering, Body, Chassis etc)
- Reset and set service and oil intervals
- EPB / SBC (electronic parking brake) caliper open and close
- Read and erase EPB / SBC error codes
- Resetting the thickness of the brake pads
- Changing basic settings and calling up measured values
- Testing actuators / controlling components
- Quick scan function: automatically scan all systems of the car
- Quick delete function: delete all existing error codes at the touch of a button
- OBD2 / EOBD support from 1996 to present (including CAN) (in European cars from 2001 for gasoline, 2004 for diesel)
- Supports all 5 OBD2 / EOBD protocols and all 10 test modes
- Advanced mode 6 support
- Read and erase generic, manufacturer specific as well as sporadic error codes
- Readout of vehicle information such as VIN, CIN and CVN
- Car memory function for easy and quick diagnosis of previously checked vehicles
- An error code is displayed with description on the large screen of the MS906S with tips on possible solutions
- Possibility of viewing frozen data (freeze frame)
- Live data viewing in text, graph and analog for data research and analysis (recording and playback)
- Printing of stored data via Bluetooth or WiFi
- Saving and printing screenshots via Bluetooth or WiFi
- MaxiFix repair and diagnostic procedures
- MaxiCloud online communication with users
- Very easy to use with intuitive menu structure
- Internet Explorer for research or placing an online order with your supplier
- Touch screen operation, similar to a tablet.
- Overvoltage protection protects the MaxiSYS MS906S and the vehicle from unwanted damage
- 2 years free updates
- 2 year warranty
Autel MaxiSys specifications
- Android 4.4.4 KitKat operating system
- Samsung Exynos Hexa-Core Processor for unmatched speed
- Instant and fast software updates
- 2GB RAM & 32GB SSD hard drive
- 8.0-inch screen 1024 x 768 pixels LED Capacitive Touch screen with IPS technology
- Wi-FI Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi
- Camera rear-facing camera with 8.0 megapixel AF with flash for taking photos and videos
- Sensors: Ambient light sensor(ALS), gravity accelerometer
- Audio input/output microphone, with 1 speaker
- 5000 mAh battery for 6 hours work time (3.7 V Lithium-polymer battery, charging via 12 V adapter)
- Input voltage 12 V (9-35 V)
- Dimensions 270mm x 176mm x 36mm
- Very sturdy plastic housing with rubber protection for grip
Autel MaxiSys MS906S accessoires
- OBD2 / EOBD cable 16 pins
- BMW 20 pins OBD1 cable
- GM / Daewoo 12 pin OBD1 cable
- Honda 3 pin OBD1 cable
- Kia 20 pin OBD1 cable
- Mercedes 38 pin OBD1 cable
- Mercedes / VW LT 14 pin OBD1 cable
- Mitsubishi / Hyundai 12+16 pin OBD1 cable
- Nissan 14 pin OBD1 cable
- VW, Audi, Seat, Skoda 2+2 pin OBD1 cable
- Cigarette Lighter Adaptor
- Mini USB cable
- 12 V AC/DC external power adapter
- 2 spare fuses

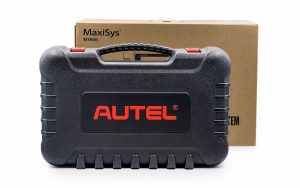

- Robust large storage case
- Autel MaxiSys MS906 manual
Advantages & drawbacks
- Volledig Nederlandstalig
- Mooi groot 8 inch touchscreen
- Complete OEM voertuigdekking
- Communiceert met alle elektronische systemen
- Resetten en instellen van service / olie intervallen
- Actuatoren testen (componenten aansturen)
- Werkt niet draadloos
- Programmeren en coderen niet mogelijk
- Geen mogelijkheid tot aansluiten inspectiecamera of oscilloscoop
Often purchased together with...
Specs summary
- Manufacturer Abarth, Alfa Romeo, Aston Martin, Audi, BMW, Bentley, Chevrolet, Chrysler, Citroën, Dacia, Daihatsu, Dodge, Ferrari, Fiat, Ford EU, Ford USA, General Motors, Honda, Hyundai, Infiniti, Jaguar, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Maserati, Mazda, Mercedes, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Subaru, Suzuki, Toyota, Universeel, Volkswagen, Volvo
- Device properties APK 2, Eigen accu, Touchscreen, Uitleesapparaat, Updates, WIFi verbinding
- Features ABS, Actuatoren aansturen, Adapter, Airbag, Elektronische parkeerrem openen, Foutcodes wissen, Freeze frame, Gasklep inleren, Inleren onderdelen, Interface, Lambdasonde / o2 sensors, Live data, Motor uitlezen, Motormanagement reset, Olie reset, Remblok reset, Roetfilter regeneren, Scantool, Service reset, Startonderbreker / immo, Stuurhoeksensor kalibreren, Transmissie, Verloopkabel
- Protocol CAN, EOBD, ISO 9141, J1850 PWM, J1850 VPW, K-Line, KWP-2000, OBD1, OBD2
